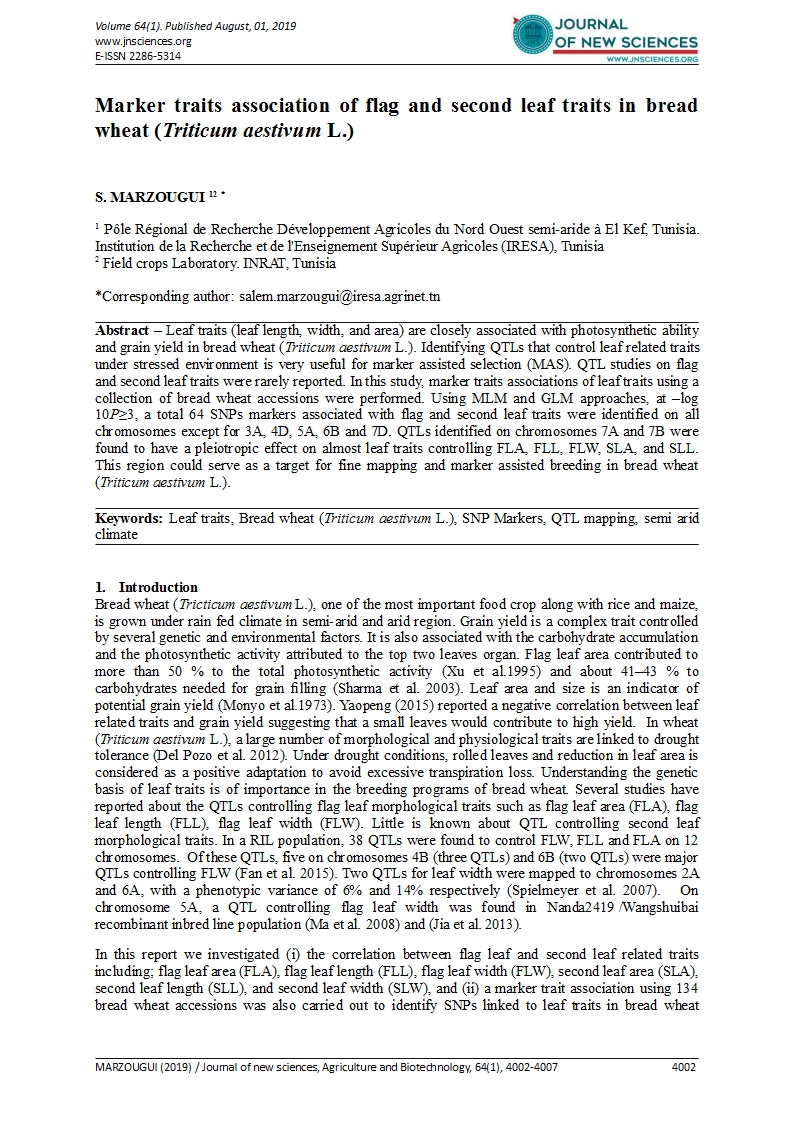

Marker traits association of flag and second leaf traits in bread wheat (Triticum aestivum L.)

Attachments:
Download this file (JNS_AB_64_1.pdf)Volume 64, Article 01[Volume 64, Article 01]594 kB

S. MARZOUGUI 12 *





1 Pôle Régional de Recherche Développement Agricoles du Nord Ouest semi-aride à El Kef, Tunisia. Institution de la Recherche et de l'Enseignement Supérieur Agricoles (IRESA), Tunisia

2 Field crops Laboratory. INRAT, Tunisia



Abstract – Leaf traits (leaf length, width, and area) are closely associated with photosynthetic ability and grain yield in bread wheat (Triticum aestivum L.). Identifying QTLs that control leaf related traits under stressed environment is very useful for marker assisted selection (MAS). QTL studies on flag and second leaf traits were rarely reported. In this study, marker traits associations of leaf traits using a collection of bread wheat accessions were performed. Using MLM and GLM approaches, at –log 10P≥3, a total 64 SNPs markers associated with flag and second leaf traits were identified on all chromosomes except for 3A, 4D, 5A, 6B and 7D. QTLs identified on chromosomes 7A and 7B were found to have a pleiotropic effect on almost leaf traits controlling FLA, FLL, FLW, SLA, and SLL. This region could serve as a target for fine mapping and marker assisted breeding in bread wheat (Triticum aestivum L.).

Keywords: Leaf traits, Bread wheat (Triticum aestivum L.), SNP Markers, QTL mapping, semi arid climate



  1. Introduction

Bread wheat (Tricticum aestivum L.), one of the most important food crop along with rice and maize, is grown under rain fed climate in semi-arid and arid region. Grain yield is a complex trait controlled by several genetic and environmental factors. It is also associated with the carbohydrate accumulation and the photosynthetic activity attributed to the top two leaves organ. Flag leaf area contributed to more than 50 % to the total photosynthetic activity (Xu et al.1995) and about 41–43 % to carbohydrates needed for grain filling (Sharma et al. 2003). Leaf area and size is an indicator of potential grain yield (Monyo et al.1973). Yaopeng (2015) reported a negative correlation between leaf related traits and grain yield suggesting that a small leaves would contribute to high yield. In wheat (Triticum aestivum L.), a large number of morphological and physiological traits are linked to drought tolerance (Del Pozo et al. 2012). Under drought conditions, rolled leaves and reduction in leaf area is considered as a positive adaptation to avoid excessive transpiration loss. Understanding the genetic basis of leaf traits is of importance in the breeding programs of bread wheat. Several studies have reported about the QTLs controlling flag leaf morphological traits such as flag leaf area (FLA), flag leaf length (FLL), flag leaf width (FLW). Little is known about QTL controlling second leaf morphological traits. In a RIL population, 38 QTLs were found to control FLW, FLL and FLA on 12 chromosomes. Of these QTLs, five on chromosomes 4B (three QTLs) and 6B (two QTLs) were major QTLs controlling FLW (Fan et al. 2015). Two QTLs for leaf width were mapped to chromosomes 2A and 6A, with a phenotypic variance of 6% and 14% respectively (Spielmeyer et al. 2007). On chromosome 5A, a QTL controlling flag leaf width was found in Nanda2419 /Wangshuibai recombinant inbred line population (Ma et al. 2008) and (Jia et al. 2013).

In this report we investigated (i) the correlation between flag leaf and second leaf related traits including; flag leaf area (FLA), flag leaf length (FLL), flag leaf width (FLW), second leaf area (SLA), second leaf length (SLL), and second leaf width (SLW), and (ii) a marker trait association using 134 bread wheat accessions was also carried out to identify SNPs linked to leaf traits in bread wheat (Triticum aestivum L.).

  1. Materials and Methods

2.1. Genetic materials Genotyping

The genetic material evaluated in this study including 134 bread wheat genotypes (Triticum aestivum L.) was selected from the U.S National Plant Germplasm System (NPGS). All accessions were typed with 1744 SNP markers selected from the iSelect 90K array containing 90,000 wheat SNP markers (Cavanagh et al. 2013) and (Wang et al. 2014). Genotypic data of the 134 selected accessions are publicly available on https://triticeaetoolbox.org/wheat. The positions of SNP markers along chromosomes in terms of genetic distance (cM) were based on the wheat 2014 consensus genetic map (Wang et al. 2014). Markers were removed if they were either monomorphic or exhibited allele frequencies of less than 5% (minor alleles).



2.2. Field trial and leaf traits measurement

Field trials were conducted under rain fed condition in the research station, ElKEf, Tunisia, characterized by a semi arid climate with an annual rainfall below 380 mm. All accessions were planted in two rows, 2.5 m long and a row spacing of 25 cm. The measurement of flag leaf and second leaf related traits was performed using Image J (Abramoff MD 2004), a Java-based image processing program developed at the National Institutes of Health. Leaf length was measured at 10 days after heading, from the beginning of the ligule to the top of the leaf and leaf width was taken at the widest part of the leaf.



2.3. Statistical analysis

For each of the leaf traits, descriptive statistical measures were obtained based on the average data of the 134 bread wheat accessions. The data on all traitswere subjected to variance. Correlation matrix between all leaf traits was performed using theR package: Performance Analytics (Brian GP 2014).

2.4. Association Mapping (AM)

The software TASSEL v.5.0 (Bradbury PJ 2007) was used to perform association mapping of leaf traits in bread wheat. For best linear unbiased estimates, a general linear model (GLM) and the mixed linear model (MLM) procedure taking into account estimated population structure (Q), and kinship matrix (K) were used. At a threshold of –log10 P ≥3.0, a significant marker trait association is declared.



  1. Results

3.1. Phenotypic analysis

The results from the descriptive statistics and the correlation matrix of the investigated characteristics are presented in Table 1 and in figure 1. The flag leaf area (FLA) ranged from 6.5 cm2 to 34 cm2 with a mean value of 14.53 cm. In all accessions, the second leaf shows a larger area than the flag leaf with a mean of 22.79 cm2. The second leaf was longer than the flag leaf with 20.39 cm and 13.07 cm respectively. In both traits, the flag leaf represents 65% of the second leaf. All skewness and kurtosis values were less than 1.0 except for FLA, indicative of continuous variation and a quantitative genetic basis controlled by multiple genes. All leaf traits are positively correlated with each other (P< 0.001).



3.2. Association mapping of leaf traits

Using GLM approach, without taking into account the kinship matrix (Q) and the estimated population structure (K), 50 associated SNPs to the studied traits were identified on all chromosomes except for 2D, 3A, 3D, 4D, 5A, and 6B. Using MLM approach, 14 significant markers associated to leaf related traits were found except for the second leaf length (SLL). A summary of the results of MTAs detected using MLM and GLM are given in the table 2 and 3.





Figure 1. Correlation matrix of all leaf related traits using R package: PerformanceAnalytics. All traits show a high positive correlation. The variation of leaf traits approximates a statistical normal distribution suggesting its complex genetic inheritance. *** Correlation is significant at the P< 0.001.



Table 1. Descriptive statistics of leaf related traits



Range

Minimum

Maximum

Sum

Mean

Std. Deviation

Variance

CV%

Skewness

Kurtosis

FLA

27.5

6.5

34

1946.4

14.53

5.28

27.9

36

1.15

1.73

FLL

15

8.1

23.1

1750.8

13.07

2.79

7.76

21

0.62

0.53

FLW

1.1

0.7

1.8

156.86

1.17

0.22

0.05

19

0.4

-0.22

SLA

29.5

9.6

39.1

3053.87

22.79

6.74

45.36

30

0.43

-0.4

SLL

17.8

11.6

29.4

2732.9

20.39

3.67

13.5

18

0.23

-0.35

SLW

1

0.7

1.7

163.7

1.22

0.23

0.05

19

-0.01

-0.7



Table 2. Results of the association mapping using MLM approach with −log10 (p) ≥3

Traits

Markers

Chr.

Pos. (Kb)

log10(p)

R2

FLA

IWA7233

IWA5802

7B

5B

58172

188578

5.77E-4

9E-4

0.13

0.12

FLL

IWA8059

IWA5381

3D

4D

148409

80677

1.92E-04

1.68E-04

0.16

0.16

FLW

IWA7233

IWA4746

IWA3536

7B

2D

1A

58172

8520

71096

1.72E-4

2.4E-4

8E-4

0.15

0.15

0.12

SLA

IWA4746

IWA7816

IWA7711

IWA3623

2D

6D

4B

5A

8520

87174

69779

98901

3.84E-4

5.12E-4

6.8E-4

9.4E-4

0.14

0.13

0.12

0.12

SLW

IWA3114

IWA3608

IWA4746

7B

4B

2D

68835

73860

8520

4E-4

4.38E-4

3.8E-4

0.14

0.14

0.14

FLA, flag leaf area; FLL, flag leaf length; FLW, flag leaf width; SLA, second leaf area; SLL, second leaf length; SLW, second leaf width

3.3. Flag leaf area (FLA)

MLM approach identified two SNP markers associated to FLA were located on chromosome 5B and chromosome 7B respectively. The phenotypic variation ranged from 12% and 13%. GLM approach identified 11 SNP markers located on chromosome 1A, 1B, 2B, 3B (2), 4A, 4B, 5B, 5D, 7A, 7B. The phenotypic variation ranged from 8% and 10%.

3.4. Flag leaf length (FLL)

Using MLM approach, two SNPs markers associated with FLL explaining 16% each of the total phenotypic variation were identified on chromosome 3D and 4D. Only 3 QTLs were identified using GLM approach on chromosome 1A, 7A and 7B.

3.5. Flag leaf width (FLW)

Using MLM approach, three SNP markers associated to FLW were located on chromosome 1A, 2D, 7B, with a phenotypic variation ranging from 12% to 15%. The QTL located on chromosome 7B has pleiotropic effect on FLA. Thirteen SNPs were identified using GLM approach, with a phenotypic variation ranging from 8% to 14%. Both approaches shared the SNP marker IWA7233 located on chromosome 7B, associated with FLW and FLA.

3.6. Second leaf area (SLA)

Four SNP markers were found using MLM with a phenotypic variation ranging from 12% and 14%. Those located on chromosome 2D and 6D were detected to control FLW and FLL respectively. Ten SNP markers were identified using GLM approach. Markers found on chromosome 1A, 1B, 2B, 3B, 4A were also associated with FLA. Those located on chromosome 1D, 2A have pleiotropic effect on FLW. Using GLM, only the SNP markers located on chr.6D was specific to SLA.

3.7. Second leaf length (SLL)

No marker trait association was found for SLL using MLM. However, 4 SNP located on chromosomes 1A, 4B, 6A, and 7B were associated with SLL. SNP located on chromosome 7B had a pleiotropic effect on SLA, FLL and FLA.

3.8. Second leaf width (SLW)

MLM approach identified 3 SNP markers located on chromosomes 2D, 4B, and 7B with 14% phenotypic variation. GLM approach identified 9 SNP markers with a phenotypic variation ranging from 8% to 12%.



  1. Discussion

Many studies indicated the importance of leaf characteristics such as shape, size, and width of the cereal leaf in relation to yield. A positive correlation between wheat flag leaf and yield was noted by Simon et al. (1999) and Quarrie et al. (2006). Identifying QTLs that control leaf related traits under stressed environment is very useful for marker assisted selection (MAS). However a few studies reported the genetic control of flag leaf and second leaf characteristics. A total of sixty-four QTLs were identified including eleven QTLs for FLA, five for FLL, fourteen for FLW, thirteen for SLA, four for SLL and eleven for SLW. These QTLs were distributed in the wheat genome. Among them, 22 were on genome A (34.3%), 32 on genome B (50%) and 10 on D genome (15.6%). The phenotypic variance explained by each QTL ranged from 8% to 13% for FLA, 8% to 16% for FLL, 8% to 15% for FLW, 8% to 14% for SLA, 8% to 11% for SLL, and 8% to 14% for SLW. QTL co-localization was found for several markers suggesting their pleiotropic effect. The QTL detected on chr.7B controlling FLA has also a pleiotropic effect on FLL, FLW, SLA and SLL. The detected marker IWA7816 on chr. 6D control both FLL and SLA. The QTL located on chr.2D has a significant effect on FLW, SLA and SLW. Previously, several QTLs controlling leaf characteristics were found. The QTL located on the long arm of chr.1A controlling FLL coincide with the QFll.cz-1A.3 (Yaopeng 2015). The co-localization of both QTLs controlling FLA and FLW on chr.1B was also reported by (Qiuhong Wu 2015) by the identification of QFla.cau-1B and QFlw.cau-1B.2. QTL detected on chromosome 2D controlling FLW coincides with QFlw.cau-2 and QFlw.tam-2D(Qiuhong Wu et al. 2015) and (Mason at al. 2011). In this study, QTLs located on chr. 7A and 7B were found to have a pleiotropic on almost leaf traits effect that control FLA, FLL, FLW, SLA, and SLL. This 7B region was only reported by (Qiuhong Wu 2015) by the identification of QFla.cau-7B.2controlling FLA.



Table 3. Results of the association mapping using GLM approach with −log10 (p) ≥3

Traits

Markers

Chr.

Pos. (Kb)

log10(p)

R2

FLA

IWA6655

IWA4594

IWA1692

IWA7422

IWA4121

IWA3780

IWA7233

IWA8053

IWA4135

IWA5802

IWA302

3B

7A

4A

1B

1A

4B

7B

3B

2B

5B

5D

65554

208714

66279

114576

155800

104788

58172

85517

84691

188578

76951

1.78E-4

2.35E-4

2.37E-4

3.4E-4

3.4E-4

3.8E-4

4.1E-4

5.7E-4

6.8E-4

7.8E-4

7.9E-4

0.10

0.09

0.09

0.09

0.09

0.09

0.09

0.09

0.08

0.08

0.08

FLL

IWA2997

IWA4594

IWA4121

7B

7A

1A

69391

208714

155800

2.5E-4

7E-4

9.9E-4

0.10

0.08

0.08

FLW

IWA6655

IWA624

IWA1692

IWA7233

IWA7422

IWA2585

IWA4135

IWA2755

IWA4594

IWA8040

IWA7276

IWA4757

IWA2273

3B

3B

4A

7B

1B

4A

2B

4B

7A

2A

1D

5B

7D

65554

80129

66279

58172

114576

48981

84691

73840

208714

142355

87358

40546

139280

8.15E-6

9.45E-6

1.75E-5

4.9E-5

5.3E-5

7E-5

3.3E-4

3.4E-4

4.7E-4

4.7E-4

7E-4

8.5E-4

9.5E-4

0.14

0.14

0.13

0.11

0.11

0.11

0.09

0.09

0.09

0.09

0.08

0.08

0.08

SLA

IWA7422

IWA8040

IWA2979

IWA4594

IWA7276

IWA4135

IWA4121

IWA7816

IWA493

IWA4685

1B

2A

7B

7A

1D

2B

1A

6D

4A

3B

114576

142355

69391

208714

87358

84691

155800

87174

48524

63962

2E-4

2.3E-4

2.8E-4

5.26E-4

5.7E-4

5.8E-4

5.9E-4

5.9E-4

6.7E-4

8E-4

0.09

0.09

0.09

0.09

0.09

0.09

0.09

0.09

0.08

0.08

SLL

IWA2997

IWA1081

IWA4115

IWA2295

7B

1A

4B

6A

69391

102319

86990

78502

3.64E-4

7E-4

8.6E-4

9.33E-4

0.11

0.08

0.08

0.08

SLW

IWA7422

IWA2585

IWA1692

IWA624

IWA2755

IWA4594

IWA4757

IWA3536

IWA8040

1B

4A

4A

3B

4B

7A

5B

1A

2A

114576

48981

66279

80129

73840

208714



40546

71096

142355

3.95E-5

1.22E-4

1.4E-4

1.6E-4

2E-4

3.95E-4

5.26E-4

8.45E-4

9.4E-4

0.12

0.10

0.10

0.10

0.10

0.09

0.09

0.08

0.08

FLA, flag leaf area; FLL, flag leaf length; FLW, flag leaf width; SLA, second leaf area; SLL, second leaf length; SLW, second leaf width



  1. Conclusion

In this study, we succeeded to identify several SNP associated markers to flag and second leaf characteristics in bread wheat (Triticum aestivum L.). These findings will be useful for markers assisted breeding of wheat under semi arid climate under drought conditions.

  1. Acknowledgments

We thank the direction of the PRRDANOSA-ElKEf and the Technical Support Section of INRAT research station for field management and soil preparation.



 References

Abramoff MD, Magalhaes PJ, Ram SJ. (2004) Image Processing with ImageJ. Biophotonics International. 11(7):36-42

Bradbury PJ, Zhang Z, Kroon DE, Casstevens TM, Ramdoss Y, Buckler ES. (2007) TASSEL: software for association mapping of complex traits in diverse samples. Bioinformatics 23: 2633–2635

Brian GP and Peter C. (2014) Performance Analytics: Econometric tools for performance and risk analysis. R packageversion 1.4.3541

Cavanagh CR, Chao S, Wang S, Huang BE., Stephen S, Kiani S, Forrest K, Saintenac C, Brown-Guedira GL, Akhunova A, et al. (2013) Genome-wide comparative diversity uncovers multiple targets of selection for improvement in hexaploid wheat landraces and cultivars. ProcNatlAcadSci USA. 110:8057–8062

Del Pozo A, Castillo D, Inostroza L, Matus I, Méndez AM, R Morcuende. (2012) Physiological and yield responses of recombinant chromosome substitution lines of barley to terminal drought in a Mediterranean-type environment. Ann ApplBiol. 160: 157–167

Fan X, Cui F, Zhao C, Zhang W, Yang L, Zhao X, et al. (2015) QTLs for flag leaf size and their influence on yield-related traits in wheat (Triticum aestivum L.) Mol Breeding 35:24

Jia H, Wan H, Yang S, Zhang Z, Kong Z, Xue S, et al. (2013) Genetic dissection of yield-related traits in a recombinant inbred line population created using a key breeding parent in China’s wheat breeding. Theor Appl Genet. 126(8):2123–2139

Ma ZQ, Xue SL, Lin F, Yang SH, Li GQ, Tang MZ, Kong ZX, Cao Y, Zhao DM, Jia HY, et al. (2008) Mapping and validation of scab resistance QTLs in the Nanda2419 × Wangshuibai population. Cereal Res Commun. 3 (Suppl B):245–251

Mason RE, Mondal S, Beecher FW, Hays DB. (2011) Genetic loci linking improved heat tolerance in wheat (Triticum aestivum L.) to lower leaf and spike temperatures under controlled conditions. Euphytica 180 (2):181–194

Monyo JH, Whittington WJ. (1973) Genotypic differences in flag leaf area and their contribution to grain yield in wheat. Euphytica22:600-606

Quarrie SA, Quarrie PS, Radosevic R, Rancic D, Kaminska A, Barnes JD, et al. (2006)Dissecting wheat QTL for yield present in a range of environments: from the QTL to candidate genes. J Exp Bot. 57(11):2627–2637

Sharma SN, RSSain, PK Sharma. (2003) The genetic control of flag leaf length in normal and late sown durum wheat. J Agr Sci. 141(3-4):323–331

Simón MR. (1999) Inheritance of flag-leaf angle, flag-leaf area and flag-leaf area duration in four wheat crosses. Theor Appl Genet. 98(2):310–314

Spielmeyer W, Hyles J, Joaquim P, Azanza F, Bonnett D, Ellis ME, Moore C, Richards RA. (2007) A QTL on chromosome 6A in bread wheat (Triticum aestivum L.) is associated with longer coleoptile, greater seedling vigor and final plant height. Theor Appl Genet. 115:59–66

Wang S, Wong D, Forrest K, Allen A, Chao S, et al. (2014) Characterization of polyploid wheat genomic diversity using a high-density 90,000 SNP array. Plant Biotechnology Journal 12: 787–796

Wu Q, Chen Y, Fu L, Zhou S, Chen J, Zhao X, Wang G. (2016) QTL mapping of flag leaf traits in common wheat using an integrated high-density SSR and SNP genetic linkage map. Euphytica208 (2): 337-351

Xu H, Zhao J. (1995) Canopy photosynthesis capacity and the contribution from different organs in high-yielding winter wheat. ActaAgron Sin. 21(2):204–209.

Yaopeng Z. (2015) Mapping quantitative traits loci for grain yield and yield related traits in a hexaploid winter doubled haploid population. Faculty of the Graduate School of the University of Maryland, College Park.
