Characterization of the tolerance to water deficit and salt stress by measuring ions released from leaf discs of Citrus and Poncirus genera.

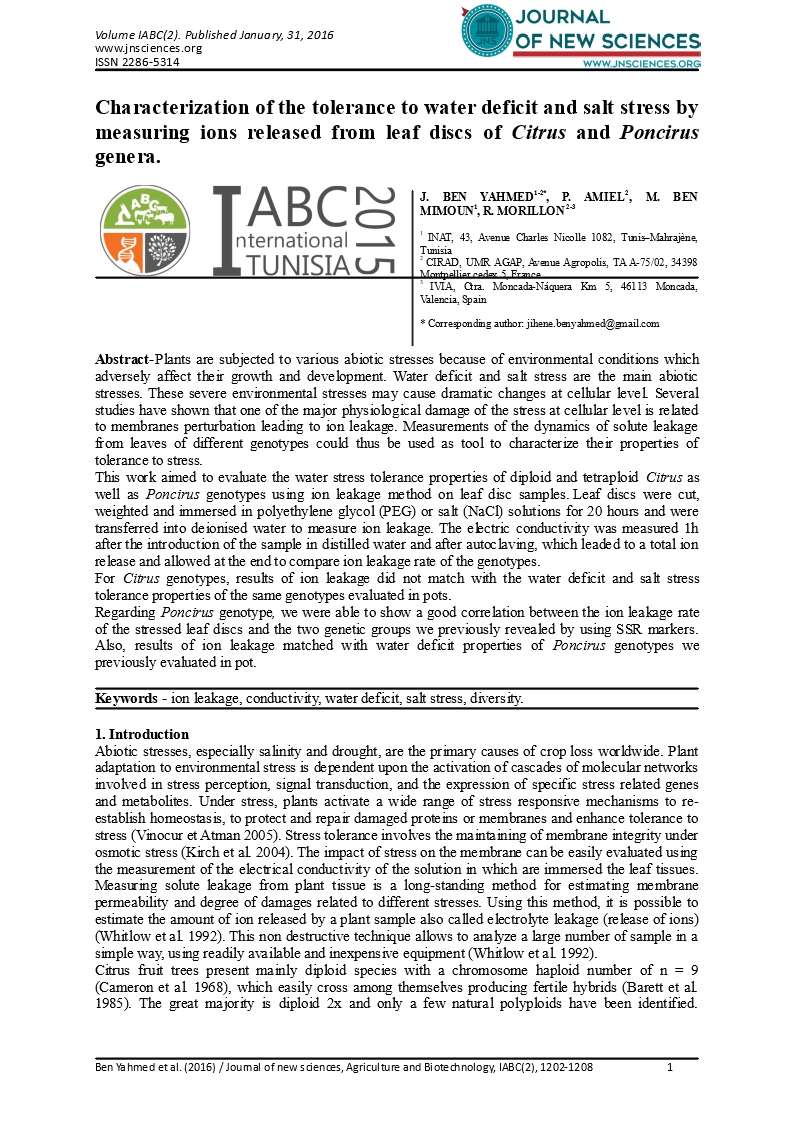

Download this file (JNS_AgriBiotech_Vol_IABC_2.pdf)Volume Spéciale - Conférence IABC 2015, Article 2[Volume Spéciale - Conférence IABC 2015, Article 2]662 kB






1 INAT, 43, Avenue Charles Nicolle 1082, Tunis–Mahrajène, Tunisia

2 CIRAD, UMR AGAP, Avenue Agropolis, TA A-75/02, 34398 Montpellier cedex 5, France

3 IVIA, Ctra. Moncada-Náquera Km 5, 46113 Moncada, Valencia, Spain


Abstract-Plants are subjected to various abiotic stresses because of environmental conditions which adversely affect their growth and development. Water deficit and salt stress are the main abiotic stresses. These severe environmental stresses may cause dramatic changes at cellular level. Several studies have shown that one of the major physiological damage of the stress at cellular level is related to membranes perturbation leading to ion leakage. Measurements of the dynamics of solute leakage from leaves of different genotypes could thus be used as tool to characterize their properties of tolerance to stress. This work aimed to evaluate the water stress tolerance properties of diploid and tetraploid Citrus as well as Poncirus genotypes using ion leakage method on leaf disc samples. Leaf discs were cut, weighted and immersed in polyethylene glycol (PEG) or salt (NaCl) solutions for 20 hours and were transferred into deionised water to measure ion leakage. The electric conductivity was measured 1h after the introduction of the sample in distilled water and after autoclaving, which leaded to a total ion release and allowed at the end to compare ion leakage rate of the genotypes. For Citrus genotypes, results of ion leakage did not match with the water deficit and salt stress tolerance properties of the same genotypes evaluated in pots. Regarding Poncirus genotype, we were able to show a good correlation between the ion leakage rate of the stressed leaf discs and the two genetic groups we previously revealed by using SSR markers. Also, results of ion leakage matched with water deficit properties of Poncirus genotypes we previously evaluated in pot.


Keywords - ion leakage, conductivity, water deficit, salt stress, diversity.


1. Introduction

Abiotic stresses, especially salinity and drought, are the primary causes of crop loss worldwide. Plant adaptation to environmental stress is dependent upon the activation of cascades of molecular networks involved in stress perception, signal transduction, and the expression of specific stress related genes and metabolites. Under stress, plants activate a wide range of stress responsive mechanisms to re-establish homeostasis, to protect and repair damaged proteins or membranes and enhance tolerance to stress (Vinocur et Atman 2005). Stress tolerance involves the maintaining of membrane integrity under osmotic stress (Kirch et al. 2004). The impact of stress on the membrane can be easily evaluated using the measurement of the electrical conductivity of the solution in which are immersed the leaf tissues. Measuring solute leakage from plant tissue is a long-standing method for estimating membrane permeability and degree of damages related to different stresses. Using this method, it is possible to estimate the amount of ion released by a plant sample also called electrolyte leakage (release of ions) (Whitlow et al. 1992). This non destructive technique allows to analyze a large number of sample in a simple way, using readily available and inexpensive equipment (Whitlow et al. 1992).

Citrus fruit trees present mainly diploid species with a chromosome haploid number of n = 9 (Cameron et al. 1968), which easily cross among themselves producing fertile hybrids (Barett et al. 1985). The great majority is diploid 2x and only a few natural polyploids have been identified. Tetraploids are the result of a chromosome stock doubling of the nucellar tissues (Cameron et al. 1969). Studies showed that citrus tetraploid 4x rootstocks are more tolerant to salt stress (Saleh et al. 2008) and water deficit (Oliveria et al. 2015, Allario et al. 2013) than their corresponding diploid. Many physiological and anatomical differences (cell sizes and size of plants, seeds, organs) between 2x genotypes and their respective 4x (Allario et al. 2011).

Trifoliate orange [Poncirus trifoliata (L.) Raf.] is a very useful taxon for the citrus industry since this rootstock is immune to the Citrus Tristeza virus (Garnsey et al. 1987). Two major genetic groups were clearly identified using 17 SSR markers. The Group 1 was characterized by larger flowers and leaves phenotypes and smaller seeds than Group 2. Tetraploid accessions showed larger leaves and heavier seeds than all other 2x accessions regardless of the genetic classification (Ben Yahmed et al. 2015a). The agronomic tolerance traits revealed during water deficit experiment also differentiated both genetic groups. Indeed, in water deficit conditions, trifoliate oranges belonging to genetic Group 2 presented the highest soil water potential, suggesting that this group experienced less stress at the root level and pooled the most tolerant trifoliate orange accessions (Ben Yahmed et al. 2015a).

The objective of this study was to evaluate the water stress tolerance estimated by the measurement of ion leakage of leaf discs of different 2x and 4x citrus genotypes. Results were compared to previous results of water deficit (Allario et al. 2013; Ben Yahmed et al. 2015a) and salt stress (Saleh et al. 2008; Mouhaya et al. 2010; Hussain et al. 2012; Ben Yahmed et al. 2015b) we performed when investigating seedlings or grafted plants.


2. Materials and methods

2.1 Plant material and culture conditions

Eight genotypes belonging to the Citrus genus, twelve Poncirus genotypes and six hybrids Citrus x Poncirus were evaluated. Seeds of accessions were provided by the INRA-CIRAD station in Corsica, France (Table 1)


Table 1. List of accessions evaluated





Accession common name


Scientific name

Citrus genus

Rangpur lime (2x, 4x) (SRA 777, SRA 1109)

Citrus limonia, Osbeck


Mandarin Willow Leaf (2x, 4x) (SRA 133, SRA 1111)

Citrus reticulata


Mandarin Cleopatra (2x, 4x) (SRA 948, SRA 1110)

Citrus reshni Hort. ex Tan



Citrus sinensis [L.]/ Citrus reticulata x Poncirus trifoliata [L.] Raf.





Citrus x Poncirus

Poncirus trifoliata x Cleopatra mandarin (2x, 4x) (ICVN 0110155, SRA1114)


Citrange Carrizo (2x, 4x) (SRA 796, SRA1075)

Citrus sinensis [L.] Osbeck × Poncirus trifoliata [L.] Raf.


Citrumelo (2x, 4x) (ICVN 0110410, SRA 1112)

Citrus paradisi × Poncirus trifoliata [L.] Raf.


Fhlorag1 (4x)

Citrus reticulata x Poncirus trifoliata [L.] Raf.

Poncirus genus

Pomeroy SG (2x, 4x) (ICVN 0110081, SRA1116)

Poncirus trifoliata [L.] Raf.


Pomeroy (2x) (ICVN 0101040)

Poncirus trifoliata [L.] Raf.


Commun (2x) (ICVN 0100935)

Poncirus trifoliata [L.] Raf.


Rubidoux (2x) (ICVN0101033)

Poncirus trifoliata [L.] Raf.


Holansis (4x) (ICVN 0110105 ; doubled diploid of ICVN 0110105)

Poncirus trifoliata [L.] Raf.


Town (2x) (ICVN 0110131)

Poncirus trifoliata [L.] Raf.


S.E.A.B (2x) (ICVN 0110086)

Poncirus trifoliata [L.] Raf.


Feuilles moyenne du Japan (2x) (ICVN 0110412)

Poncirus trifoliata [L.] Raf.


Jacobsen (2x) (ICVN 0110106)

Poncirus trifoliata [L.] Raf.


Flying Dragon (2x) (ICVN 0110101)

Poncirus trifoliata [L.] Raf.


Kryder (2x) (ICVN 0101029)

Poncirus trifoliata [L.] Raf.

Plant materials were propagated by sowing seeds in a neutral substrate (perlite). Seedlings were transplanted 4 months after germination into 3.5 L pots in a mixture of sand, turf and peat (1:1:1), and regular fertilization was applied according to Allario et al. (2011). The ploidy status of seedlings was confirmed by flow cytometry (Partec I) according to Froelicher et al. (2007). Plants were grown for one year in green house under natural photoperiod conditions 15 / 9 hours (day / night) and temperature 26/20°C. Irrigation was performed twice a week.


2.2 Measurement of electrolyte leakage at the cellular level

Leaves of each genotype were harvested and placed on ice until the beginning of the treatment (<1h). Leaf discs were cut and plunged into 2 mL of a 300 mM NaCl solution or a 25 mM of PEG solution corresponding respectively to an osmotic pressure of -1.38MPa and -0.92MPa (measured by an osmometer Vescor 5500).For each treatment, 10 reps of two discs were used for the experimentation. Each 2 discs were taken from the same leaf. The discs were weighed (p) and placed in the solutions for 20h at ambient temperature (26°C).After the stress period, the discs were rinsed with deionized water, transferred into new tubes containing 20 mL of deionized water. The first conductivity measurement was taken immediately after the transfer of the discs in the tubes (T0) using a conductivity meter. After 1 hour (T1), the solution was homogenized rapidly with a vortex and the conductivity was measured. Finally, the tubes were autoclaved for 20 minutes at 121°C; the last measurement is performed after cooling (25°C) and homogenization. This measure corresponds to the maximum ion release (Tf).The release of ions E is calculated using the following equation:

This gives the percentage of ions released the first hour after rehydration based on the total ion release on the weight of the discs (p).


2.3 Statistical analysis

Plus software for Windows (version 4.1; MicrosoftCorp., Redmond, WA, USA) was used for statistical analysis and SigmaPlot (Systat Software, San Jose, CA) software for the figures. The data are expressed as means ± S.E. An ANOVA was used to detect the differences between genotypes.


3. Results and discussion

3.1 Characterization of ion leakage of leaf discs of Citrus and Poncirus genotypes

Leaf discs of Citrus and Poncirus genotypes were subjected to salt stress using NaCl solution. Percentage of ion released from the leaf discs are presented in Figure 1.

The highest percentage of ions released under NaCl stress was observed for Willow Leaf mandarin 2x (1.057 % µS/mg), Rangpur lime 2x (0.896 % µS/mg) and 4x (0.879 % µS/mg). Willow Leaf mandarin 2x released more ions than trifoliate orange Pomeroy 2x, Pomeroy 4x, and Flhorag1 4x (Figure 1). Poncirus are known to be salt stress sensitive (Saleh et al. 2008). However, in high salt stress conditions, tetraploid Poncirus and Flhorag1 4x seedlings were slightly affected by the stress (Mouhaya et al. 2010) while Willow Leaf mandarin was shown to be sensitive. Therefore, when grown as seedlings, or when investigated on leaf discs, Willow leaf mandarin seems to be more sensitive to salt stress than Poncirus genotypes.

The lowest rates were observed for 2x Poncirus x Cleopatra hybrid (0.259 % µS/mg), 2x Pomeroy (0.294 % µS/mg) and 2x Citrumelo (0.310 % µS/mg) and 4x Carrizo Citrange (0.328 % µS/mg). Results in Pomeroy and Carrizo Citrange are puzzling since these genotypes are known to be quite salt stress sensitive in the field. However, the stress we performed was applied on leaf discs do not take into account mechanisms characterizing ion absorption regulation (root exclusion) at root level. Indeed, when investigating accessions known to be tolerant to salt stress as rootstock, we showed that twigs of the same genotypes immerse in salt solution presented sensitivity phenotype (Ben Yahmed et al. 2015c). Conversely, seedlings of sensitive genotypes were shown to be tolerant suggesting that ion exclusion mechanisms may exist in leaf favoring the adaptation (Ben Yahmed et al. 2015b). To end the ability of genotypes to tolerate salt stress may be related to their capacity to reduce central metabolic processes related to carbon utilization and toxic ion exclusion (Hussain et al. 2012)


Figure 1. Percentage ion released from the leaf discs of 15 Poncirus and Citrus genotypes during the first hour after NaCl stress.


3.2 Characterization of stress tolerance of Citrus and Poncirus genotypeswhen investigatingion leakage leaf discs under water deficit

Leaf discs of Citrus and Poncirus genotypes were subjected to water deficit using PEG solution. Percentages of ion released for each genotype are presented in Figure 2. The genotypes that released the most of ions were 2x Pomeroy (0.048 %µS/mg) and 4x Cleopatra mandarin (0.044 %µS/mg), 2x Carrizo Citrange (0.048 %µS/mg) 4x Carrizo Citrange (0.032 %µS/mg). The 4x Rangpur lime was the genotype that showed the fewer ion release on leaf discs. When grafted Rangpur lime is known to be highly tolerant to water deficit (Allario et al. 2013). However, the tolerance of Rangpur lime seedlings to water deficit is probably much lower as proposed by Oliveria et al. (2015). Thus, as hypothesized for salt stress, specific mechanisms in leaves of some genotypes are probably involved which lead to limit ion leakage when discs are immersed in PEG solution.



Figure 2. Percentage ion released from the leaf discs of 15 Poncirus and Citrus genotypes during the first hour after PEG stress.


We observed also that the 4x released fewer ions than the respective 2x except for Cleopatra mandarin x Poncirus, Cleopatra mandarin and Carrizo Citrange (Figure 2). In fact, when subjected to a water deficit, preliminary results suggest that 4x are more tolerant than their respective 2x cultivars (Oliveria et al. 2015). Indeed, because of the high differentiation that occurs at root and leaf levels between 2x and 4x (Mouhaya et al. 2010; Allario et al. 2011), it is possible that specific mechanism such as detoxification may act in 4x and favor their adaption and limiting ion leakage in leaf discs (Zhang et al. 2010; Wang et al. 2013). Moreover, the higher drought tolerance could be related to the greater osmotic adjustment, which was reflected by smaller reductions in leaf relative water content and in higher turgor potentials and leaf gas exchange (Rodríguez-Gamir et al. 2010)


3.3 Correlation between ion release under salt stress and genetic diversity

The impact of the salt stress on leaf discs of different Poncirus genotypes is shown on Figure 3. Poncirus Pomeroy 2x and Town were the genotypes that released the lowest percentage of ions (0.02%µS/mg). The 4x Pomeroy (ICVN 0110081) showed high ions released than respective 2x (Figure 3). Saleh et al. (2008) showed that leaf fall was observed only for 2x Poncirus plants as well as chlorosis symptoms and 4x Poncirus were more tolerant to salt stress than 2x.

Despite the fact that Poncirusgenotype was known to be one of the most salt stress sensitive rootstocks (Saleh et al. 2008, Hussain et al, 2012), the response to salt stress on leaf discs was not the same for all studied genotypes. The percentages of ion release in discs ranged from 0.2% to 0.8%. The genetic diversity in Poncirus genotypes was analyzed using 17 SSR markers and two distinct genetic groups were identified (Ben Yahmed et al. 2015a). In that study, a water deficit experiment was performed on genotypes representative of both genetic groups. A good correlation was observed regarding water deficit traits and both genetic diversity. Ours experiments on leaf discs revealed the existence of a correlation between the ion release percentage and both genetic groups. Interestingly, the genotypes that released fewer ions were mostly part of group 1 unlike genotypes of genetic group 2 which displayed a higher percentage of ions release.



Figure 3. Percentage ion released from the leaf discs of 12 Poncirus genotypes during the first hour after NaCl stress.


3.4 Correlation between ion release under water deficit and genetic diversity

Leaf discs of the different Poncirus were subjected to a water stress when immersed in PEG solution. Results are presented in Figure 4. We can notice that the ions release was much lower for the PEG stress compared with salt stress (about 4.5 times less). Poncirus Commun, Town and Feuilles moyenne du Japon released ions about 3 fold more than (2x) Pomeroy, S.E.A.B, Holansis, Rubidoux and Flying Dragon (Figure 4).

When grafted, Poncirus rootstocks are known to be sensitive to drought (Wu et al. 2007). Ben Yahmed et al. (2015a) showed that Poncirus seedlings can support water limitation for weeks and remain alive, and are then tolerant to drought. However, the correlation between water deficit tolerance on leaf discs and seedlings is difficult to establish. In fact, the water deficit tolerance of a seedlings or a grafted tree depends mainly on the total leaf area, the capacity to regulate water loss through stomata and to root architecture (Ben Yahmed et al. 2015a). Also, it is known that genotypes that present roots capable of growing deeply in the soil are usually much more tolerant to drought, since they are less affected by soil drying. Nevertheless, we observed that the Poncirus group 1 released fewer ions than group 2. Ben Yahmed et al. (2015a) observed that group 2 genotypes were more tolerant to water stress than those of genetic group 1. However we cannot exclude that osmotic adjustment may occur in seeding subjected to water deficit which may have not happened when discs were plunged in PEG.


Figure 4. Percentage ion released from the leaf discs of 12 Poncirus genotypes during the first hour after PEG stress.


4. Conclusions

Investigations of ion leakage induced by water stress in leaf discs of 2x and 4x Citrus seedlings did not match with results of seedlings investigated in pots. However, the method was quite reliable when analyzing Poncirus genotypes. It was indeed possible to correlate our results with those obtained using SSR markers to structure the diversity within Poncirus genus. Genotypes that released fewer ions belonged to the group 1 while the second genetic group released much more ions.



Jihene Ben Yahmed was supported by a doctoral degree scholarship from the Government of Tunisia, Ministry of Higher Education and Scientific Research of Tunisia. This work was funded by a French CTPS project “AAP12n°3/C2012-01”.


5. References

Allario T, Brumos J, Colmenero-Flores JM, Iglesias DJ, Pina JA, Navarro L, Talon M, Ollitrault P, Morillon R (2013) Tetraploid Rangpur lime rootstock increases drought tolerance via enhanced constitutive root abscisic acid production. Plant, Cell Environ 36:856-68

Allario T, Brumos J, Colmenero-Flores JM, Tadeo F, Froelicher Y, Talon M, Navarro L, Ollitrault P, Morillon R (2011) Large changes in anatomy and physiology between diploid Rangpur lime (Citrus limonia) and its autotetraploid are not associated with large changes in leaf gene expression. J Exp Bot 62:2507-2519

Barrett H (1985) Hybridization of Citrus and related genera. Fruit Var J 39:11-16

Ben Yahmed J, Costantino G, Amiel P, Talon M, Ollitrault P, Morillon R, Luro F (2015a) Diversity in the trifoliate orange taxon reveals two main genetic groups marked by specific morphological traits and water deficit tolerance properties. The Journal of Agricultural Science FirstView:1-20

Ben Yahmed J, de Oliveira TM, Novillo P, Quinones A, Forner M-A, Salvador A, Froelicher Y, Mimoun MB, Talon M, Ollitrault P (2015b) A simple, fast and inexpensive method to assess salt stress tolerance of aerial plant part: investigations in the mandarin group. J Plant Physiol.doi:10.1016/j.jplph.2015.10.008

Ben Yahmed J, Novillo P, Garcia-Lor A, Salvador A, Ben Mimoun M, Luro F, Talon M, Ollitrault P, Morillon R (2015c) Salt tolerance traits revealed in mandarins (Citrus reticulata Blanco) are mainly related to root-to-shoot Cl− translocation limitation and leaf detoxification processes. Sci Hortic 191:90-100

Cameron J, Soost R (1970) Characters of new populations of Citrus polyploids, and the relation between tetraploidy in the pollen parent and hybrid tetraploid progeny. In:Chapman HD (ed) 1st International Citrus Symposium. University of California, Riverside, pp 199-205.

Cameron JW, Frost HB (1968) Genetics, breeding and nucellar embryony. In:Reuther W, Batchelor LD, Webber HJ (eds) The Citrus Ind. University of California Press, Berkeley, pp 325–370

Garnsey SM, Barrett HC, Hutchison DJ (1987) Identification of citrus tristeza virus resistance in citrus relatives and its potential applications. Phytophylactica 19:187-191

Froelicher Y, Bassene J-B, Jedidi-Neji E, Dambier D, Morillon R, Bernardini G, Costantino G, Ollitrault P (2007) Induced parthenogenesis in mandarin for haploid production: induction procedures and genetic analysis of plantlets. Plant Cell Rep 26:937-944

Hussain S, Luro F, Costantino G, Ollitrault P, Morillon R (2012) Physiological analysis of salt stress behaviour of citrus species and genera: Low chloride accumulation as an indicator of salt tolerance. S Afr J Bot 81:103-112

Kirch H-H, Bartels D, Wei Y, Schnable PS, Wood AJ (2004) The ALDH gene superfamily of Arabidopsis. Trends Plant Sci 9:371-377

Mouhaya W, Allario T, Brumos J, Andrés F, Froelicher Y, Luro F, Talon M, Ollitrault P, Morillon R (2010) Sensitivity to high salinity in tetraploid citrus seedlings increases with water availability and correlates with expression of candidate genes. Funct Plant Biol 37:674-685

Moya J, PrimoMillo E, Talon M (1999) Morphological factors determining salt tolerance in citrus seedlings: the shoot to root ratio modulates passive root uptake of chloride ions and their accumulation in leaves. Plant, Cell Environ 22:1425-1433

Oliveira TM, Micheli F, Maserti EB, Navarro L, Talón M, Ollitrault P, Gesteira AdS, Morillon R (2015) Physiological Responses of Diploid and Doubled Diploid ‘Rangpur’Lime under Water Deficit. Acta Hortic 1065:1393-1397

Rodríguez-Gamir J, Primo-Millo E, Forner JB, Forner-Giner M (2010) Citrus rootstock responses to water stress. Sci Hortic 126:95-102

Saleh B, Allario T, Dambier D, Ollitrault P, Morillon R (2008) Tetraploid citrus rootstocks are more tolerant to salt stress than diploid. C R Biol 331:703-710

Vinocur B, Altman A (2005) Recent advances in engineering plant tolerance to abiotic stress: achievements and limitations. Curr Opin Biotechnol 16:123-132

Wang Z, Wang M, Liu L, Meng F (2013) Physiological and proteomic responses of diploid and tetraploid black locust (Robinia pseudoacacia L.) subjected to salt stress. Int J Mol Sci 14:20299-20325

Whitlow TH, Bassuk NL, Ranney TG, Reichert DL (1992) An improved method for using electrolyte leakage to assess membrane competence in plant tissues. Plant Physiol 98:198-205

Wu G, Wei Z-K, Wang Y-X, Chu L-Y, Shao H-B (2007) The mutual responses of higher plants to environment: physiological and microbiological aspects. Colloids Surf B Biointerfaces 59:113-119

Zekri M, Parsons L (1992) Salinity tolerance of citrus rootstocks: Effects of salt on root and leaf mineral concentrations. Plant Soil 147:171-181

Zhang X-Y, Hu C-G, Yao J-L (2010) Tetraploidization of diploid Dioscorea results in activation of the antioxidant defense system and increased heat tolerance. J Plant Physiol 167:88-94
